Stainless Steel Perforated Mesh Filter Cartridge Supplier

Reusable SS304/316 mesh cartridge with a rigid perforated support core for screening suspended particles from process liquids. Designed for stable flow, mechanical support and repeated cleaning.

문의
사랑을 나누세요

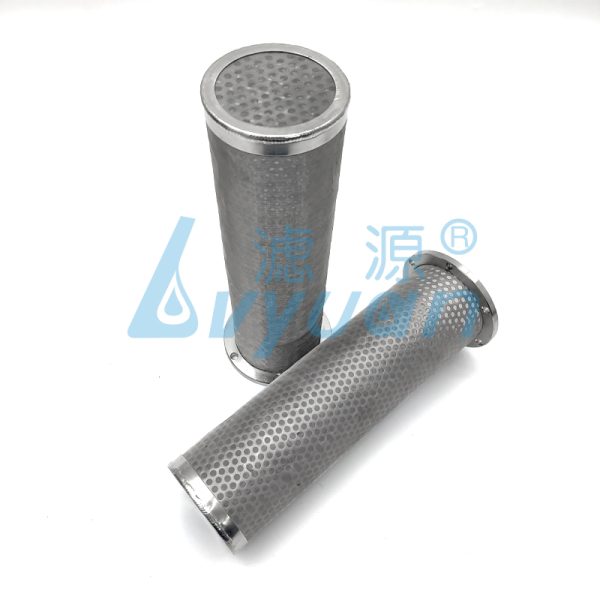

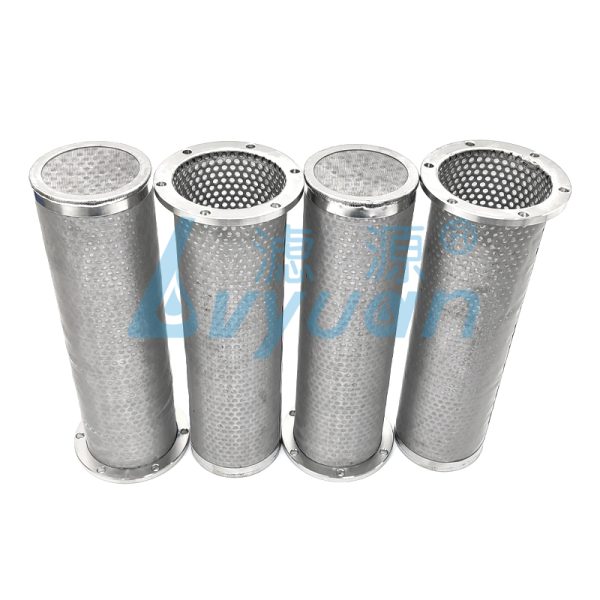

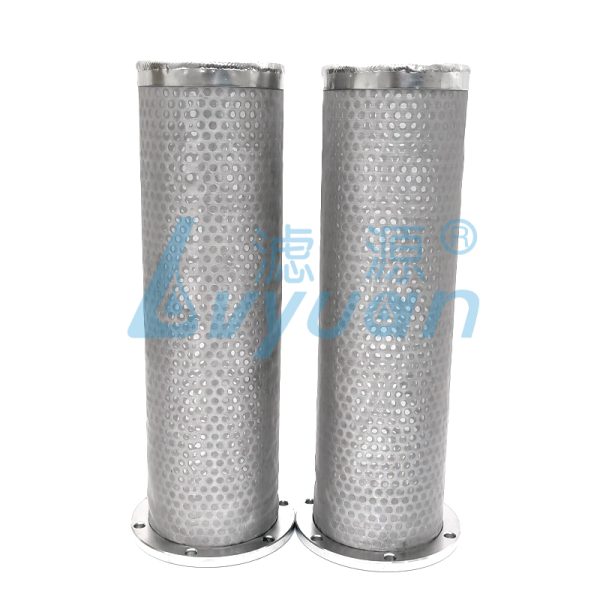

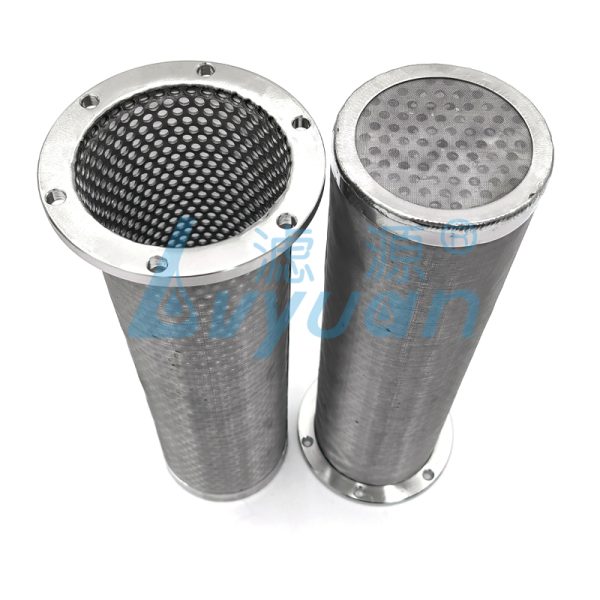

This stainless steel perforated mesh filter cartridge combines woven wire mesh with a rigid perforated support core. The mesh provides particle retention while the perforated tube supports the media and maintains flow under differential pressure. Its all-metal construction allows repeated cleaning and reuse in industrial filtration solutions.

It is suited to low-viscosity process liquids, industrial water and recycled water pre-filtration, DI/RO system protection, and safety filtration of inks, paints, varnishes and adhesives. Flanged and custom-size versions can also be produced for equipment where standard cartridge dimensions do not fit.

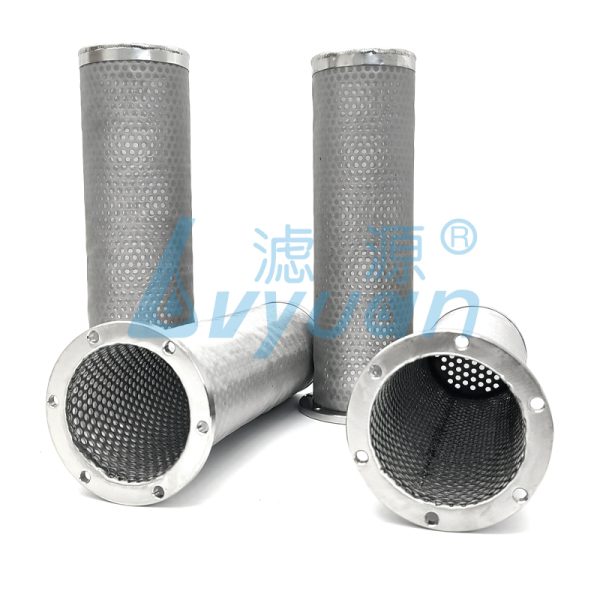

Stainless Steel Perforated Mesh Filter Cartridge (7)Stainless Steel Perforated Mesh Filter Cartridge (2)

유형

Reusable perforated mesh filter cartridge

재료

SS304/316 stainless steel

미디어 필터링

Stainless steel wire mesh with perforated support core

여과 등급

5–1,000 μm

온도

Up to 300°C (572°F)

Differential Pressure

Up to 10 bar (145 psi)

길이

10", 20", 30", 40" or customized

End Connection

Flanged, DOE/SOE or customized end fitting
