Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| Start Port: | Guangzhou |
|---|---|
| Production Capacity: | 500 units/Month |
| Place of Origin: | Guangdong, China |
| Payment: | D/P, T/T, Alibaba Trade Assurance, paypal |
| MOQ: | 4 pcs |
| Model: | LY-HFPK |
| Delivery Time: | Within 7 working days |
| Certification: | ISO 9001 |
| Brand: | OEM/Lvyuan |

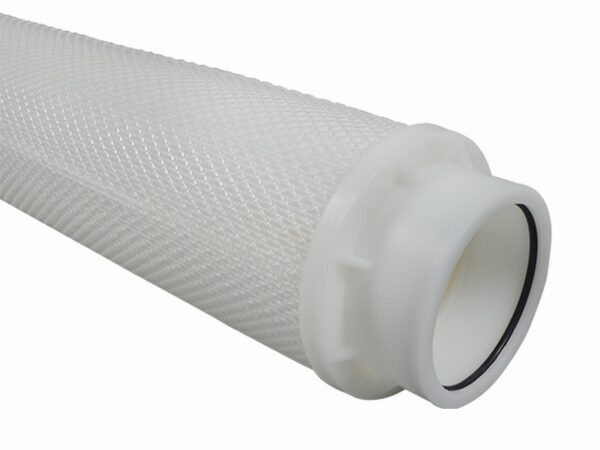

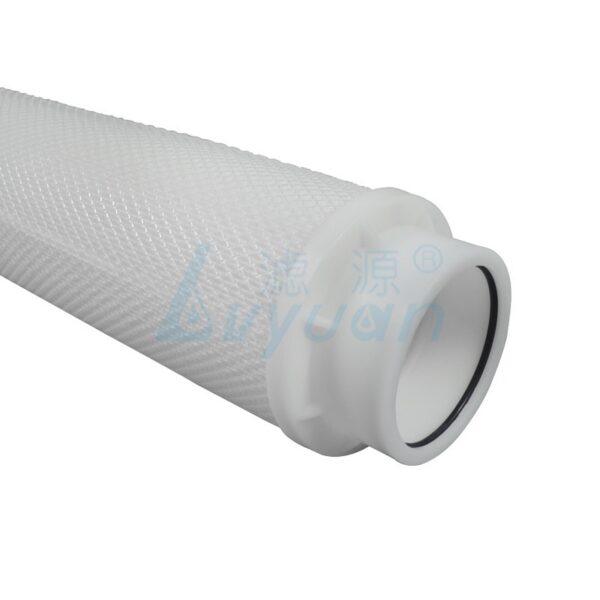

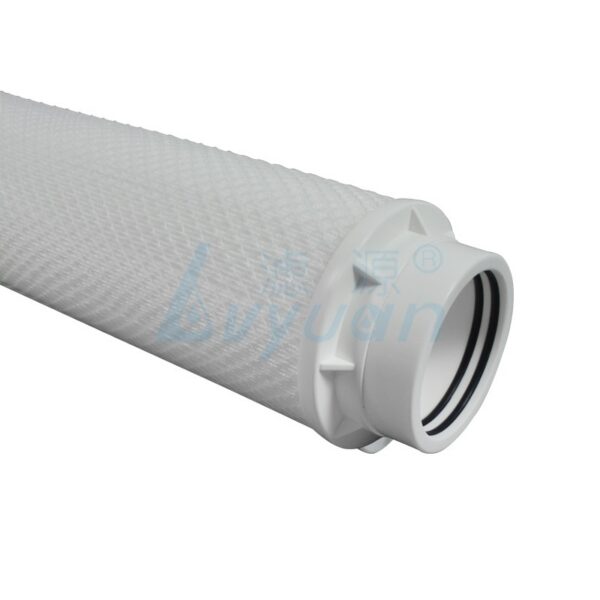

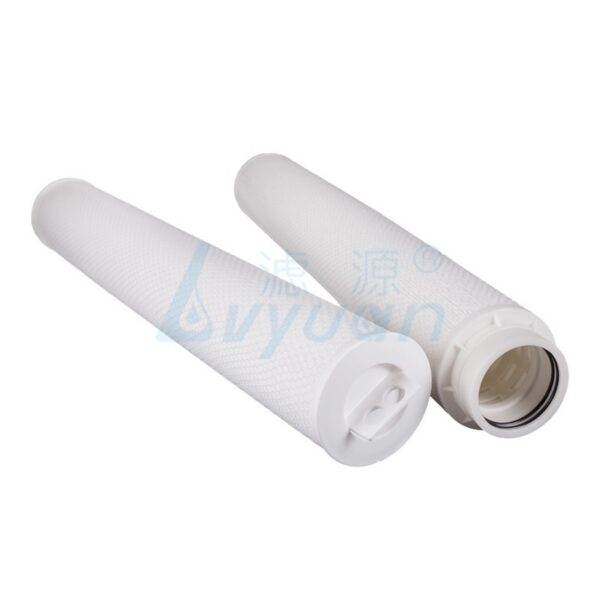

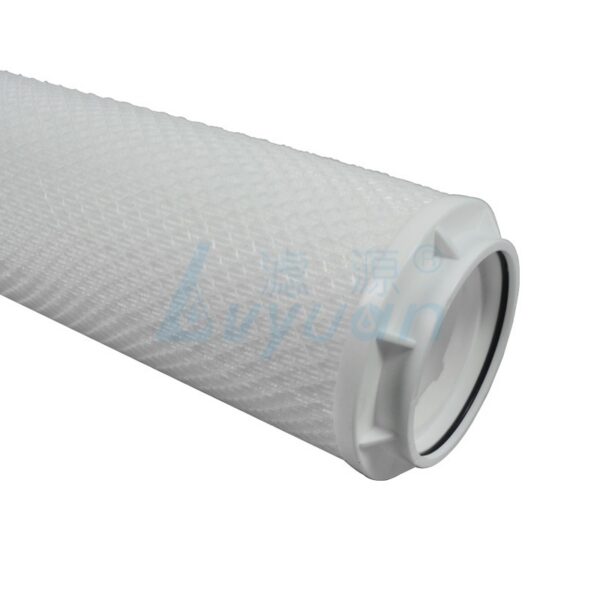

The LY-HFPK filter cartridge series is a replacement cartridge for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example. The Lvyuan filter pleated design with high flow area and contamination removal capacity.
This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10×40” long, 2-1/2” diameter filter cartridges. Inner O-ring insures no by passing and handle design makes the installation easier.
Product Feature
| Product Name | HFPK Series high flow pleated cartridge filter replacement filter elelment(LY-HFPK) |
| Filter media | PP/Polypropylene membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6”(152mm) |
| Length | 20”, 40”, 60”, Customized |
| Max.operating temperature | 82℃(Pleated PP) |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
★ 100% pure polypropylene PP materials for wide chemical compatibility, reduce the filter elements quantities to large water flow rate.
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
